C8000 Universal Converter

Multi Channel Photometric and Electrochemical Converter

Multi channel converter for all optek photometric and conductivity sensors and electrochemical pH electrodes. Flexible configuration of sensors, measuring ranges, units and product specific setups make the C8000 converter series a powerful device in process monitoring in both conventional and single-use systems.

Used For

  • For UV, VIS, NIR Absorption sensors and pH and conductivity sensors
  • Color scales:
    • APHA / HAZEN / Pt/Co color
    • AOCS (Method Cc 13b-45) color
    • ASTM (D1500) color
    • EBC color
    • ASBC color
    • Gardner (ASTM D1544) color
    • KLETT color
    • Saybolt (ASTM D 156, D 6045) color
  • Turbidity scales:
    • CU (concentration units)
    • ppm (DE)
    • FTU
    • FAU
    • EBC
  • Electrochemical scales:
    • Conductivity: 0 - 850 mS/cm
    • pH: 0 - 14

The Control 8000 universal converter operates optek photometric sensors along with 2 pH-probes and 2 conductivity sensors (optek ACF/ACS series) simultaneously. All measurements (2 x optical, 2 x pH, 2 x conductivity and 2 x temperature) are transmitted with 8 standard 0/4-20 mA-outputs and may also be displayed as text and bar graphs.

Remote Control

  • Parameter set
  • Zero

Display Modes

  • 2 - 8 simultaneously displayed values (configurable)
  • Numeric with bar graph
C8000 C8000 C8000

Software Tools

  • 8 parameter sets (incl. range, display etc.)
  • 16 linearization tables (max. 11 points)
  • 8 offset and slope sets
  • Auto zero (local or remotely activated)
  • Factory zero (scattered light sensors only)
  • Password protection (3 levels and none)
  • Memory (non-volatile) retains all configurations and logged data
Features
Benefits

8 photometric and electrochemical channels measurement converter
Combined photometric and electrochemical measurement setup saving additional converter costs

Menu based software in several languages including linearization curve options
Easy configuration of the converter for individual applications for up to 8 measurement results

Graphics display for up to 8 real time measurements
Free editable measurement formats and multiple data display and output capabilities

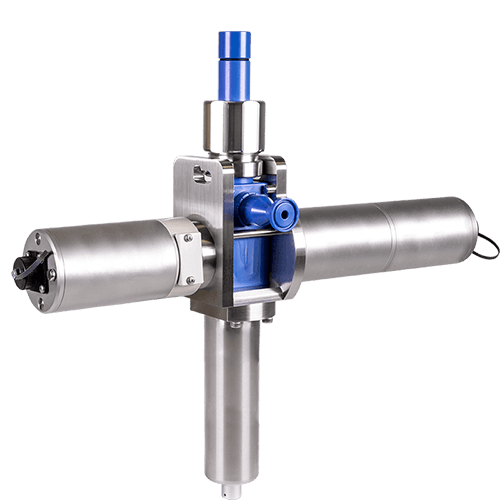

Support of optek S.U.C single use cells for up to 8 parameters
Quick and easy setup and calibration of single use systems
C8000
Housing

19"-version for mounting in control cabinets 3 U / 42 HP

dimensions:W 213.0 mm (8.39 in.) H 128.4 mm (5.06 in.) D 230.0 mm (9.05 in.)

material:stainless steel / polyester / silicone / glass / diverse plastics

protection:front IP40 / rear IP20 (mains supply secured against accidental touching)

Display

LCD graphic display black on white (240 x 128 pixel), LED background illuminated

Operation

18-button keyboard

System clock

accuracy approx. 1 minute/month (battery life approx. 15 years)

LED

1 LED (green):power on

1 LED (red-flashing):system failure

Data logger

8 parallel measuring values

(ring buffer with approx. 12,500 data points x 8)

(interval: 1/second - 1/hour)

Sensor-inputs

4 for optek photometric sensors

2 for optek conductivity sensors

2 for pH-probes (temperature compensated)

Remote-inputs

standard:4 x 24 V (19 - 29 V DC),
typically 6.0 mA for remote range setting, remote zero

FOUNDATION™ Fieldbus interface

optional:

FOUNDATION™ Fieldbus H1 (IEC 61158-2)

Sensor lamp-outputs

1 lamp supply for optek photometric sensors

4.5 ... 7.8 V DC

mA-outputs

8 x 0/4 - 20 mA (NAMUR)

(functionally galvanically isolated)

accuracy:< 0.5 %

resolution:< 0.05 %

load:< 600 Ohm

Failsafe-output

1 SPDT contact to alarm in case of lamp or system failure (active)

0 - 50 V AC, 0 - 75 V DC, 0 - 2 A

Serial communication

RS232 bi-directional interface on front panel (with software package optek PC-transfer)

upload / download of configuration, download of data logger content

Cable lengths
(sensor)

2, 3, 5, 10, 15, 20, 30 m

(7, 10, 16, 33, 49, 66, 98 ft)

sensors: ASD: 2, 3, 5 or 10 m (7, 10, 16 or 33 ft.)

Power supply

115 / 230 V AC, selectable (93.5 - 132 / 187 - 264 V AC, 47 - 64 Hz) or 24 V AC / DC (AC: 20.4 - 26.4 V AC, 47 - 64 Hz; DC: 20.4 - 28.8 V DC)

power consumption:< 50 VA

Ambient conditions

temperature during operation (no direct sunlight):

converter: -10 - 55 °C (14 - 131 °F)

with optional stainless steel housing S19-42 (IP65): -20 - 45 °C ( -4 - 113 °F)

with optional plastic housing B19-42 (IP66): -10 - 40 °C (14 - 104 °F) (C4000 only)

with optional Ex D housing (IP65): -20 - 40 °C ( -4 - 104 °F) (C4000 only)

temperature during transport (no direct sunlight): -20 - 70 °C ( -4 - 158 °F)

Software languages

English, German, French, Spanish, Dutch, Portuguese, Russian

Data given are subject to changes without prior notice.
C8000 Sensor Combination
1 AF, AS or TF Sensor or 2 ASD Sensors
AF16 VIS-NIR Absorption 1
AS16 VIS-NIR Absorption 1
AF26 Dual channel color 1
AF45 UV-Absorption 1
AF46 Dual channel UV 1
TF16 11° scattered light 1
ASD12 NIR Absorption 2
ASD25 NIR Absorption 2
4 Electrochemical Sensors
pH-probe 2
Conductivity optek ACF (6-pol) 2

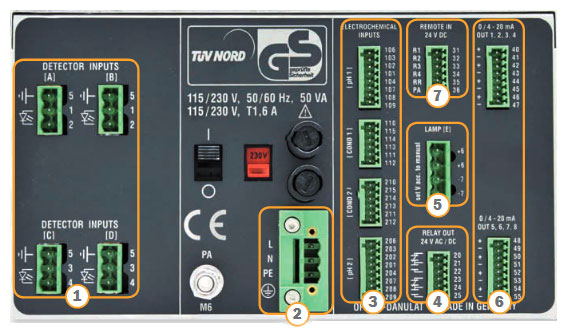

C8000 Back panel
C8000 - Configuration C8480 C8486 C8080 C8086
1 Detector inputs (optek) 4 4 - -
2 ower supply 115/230 or 24 V checkmark checkmark checkmark checkmark
7 Remote-IN: (Zero, Range) checkmark - checkmark -
Relay-outputs - - - -
4 Failsafe-relay (active) checkmark checkmark checkmark checkmark
5 Lamp output (optek) checkmark checkmark - -
6 mA-outputs (0/4 - 20 mA) 8 8 8 8
mA-inputs (4 - 20 mA) - (with C4000 only)
PROFIBUS® PA - (with C4000 only)
8 FOUNDATION™ Fieldbus - checkmark - checkmark
3 pH-probe 2 2 2 2
Conductivity (optek ACF) 2 2 2 2
Ex-proof (optional) - (with C4000 only)
C8000 Back panel Foundation Filedbus

Speed / Spare Parts

Installation Kit C8000

Installation Kit C8000

PN: 1200-3347-0001-00

Installation Kit S19

Installation Kit S19

PN: 1200-3390-0003-00

Front panel Mounting Kit for series C4000, C8000, HazeControl

Front panel Mounting Kit for series C4000, C8000, HazeControl

PN: 1200-3321-0001-00

Wall mount housing S19-42 for 1 converter C4000, C8000, HazeControl or for 2 converters X56

Wall mount housing S19-42 for 1 converter C4000, C8000, HazeControl or for 2 converters X56

PN: 1200-3321-0003-00

10x Fuse T 1,600A (5x20)

10x Fuse T 1,600A (5x20)

PN: 1200-3300-0005-00

10x Fuse T 3,150A (5x20)

10x Fuse T 3,150A (5x20)

PN: 1200-3300-0007-00

C4000 - C8000 Product Information
