HC4000 Converter

Superior performance turbidity monitoring converter

Dedicated to optek turbidity sensors the HC4000 provides high precision signal processing combined with flexible configuration of the measurement setup. Several scales, like FTU or EBC can be selected to display the photometric signal in common units with product and process control.

Used For

  • For NIR/VIS Absorption sensors
  • Turbidity scales:
    • CU (concentration units)
    • ppm (DE)
    • FTU
    • NTU
    • FAU
    • EBC

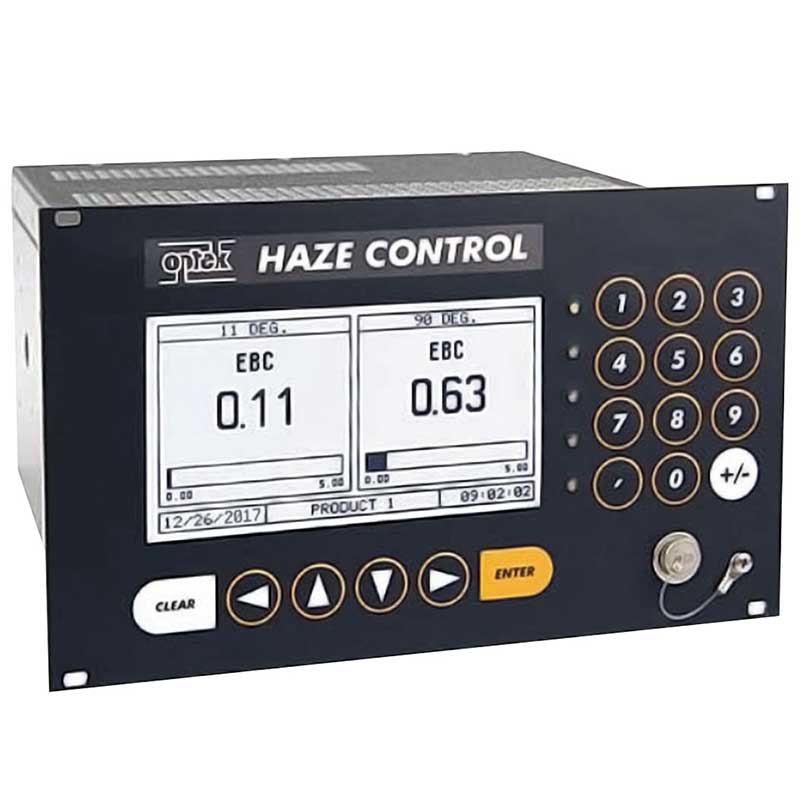

The Haze Control 4000 photometric converter is designed to operate with the optek DTF16 (11°/90° scattered light sensor) and additionally with AF16 or AS16, visible (VIS) or near-infrared (NIR) based sensors. The graphic display can show absorbance, turbidity and concentration in real-time and in any unit of measure such as EBC, FTU, ppm (DE), NTU, ASBC and Helms. These measurements may also be displayed as text, bar graphs or trend values. A factory zero point is implemented for the scattered light sensors. A second user defined zero for additional offset is included, as well as a slope and offset adjustment. This manual adjustment can be used to help correlate results to other brands of lab instruments.

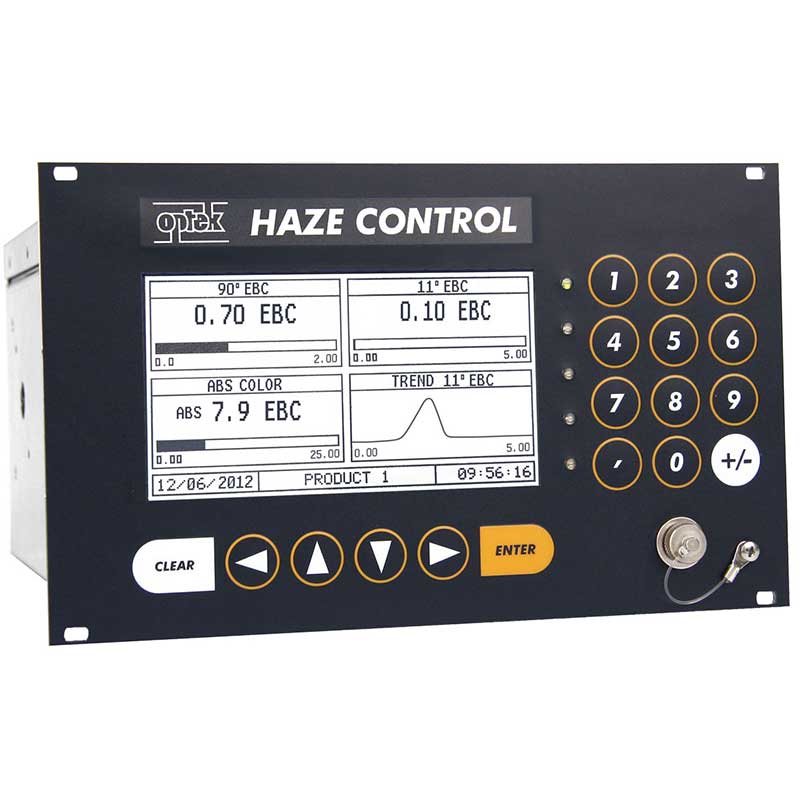

Display Modes

  • 1 - 4 simultaneously displayed values (configurable)
  • Numeric with bar graph and alarm setting
  • Trendline
HC4000 HC4000

Remote Control

  • Parameter set (e.g. range)
  • Zero
  • Hold

Software Tools

  • 8 parameter sets (incl. range, alarm, display, etc.)
  • 16 linearization tables (max. 11 points)
  • 8 offset and slope sets
  • Auto zero (local or remotely activated)
  • Factory zero setting (scattered light sensors only)
  • Password protection (3 levels and none)
  • Memory (non-volatile) retains all configurations and logged data
Features
Benefits

4 channel photometric measurement converter for up to 2 sensors
Nephelometric / haze measurements in combination with additional color or high turbidity detection

Menu based software in several languages including linearization curve options
Pre-configured and calibrated for haze measurement and multiple sensors

Graphics display for up to 4 real time measurements
Free editable measurement formats and multiple data display and output capabilities

Optional PROFIBUS® PA, FOUNDATION™Fieldbus
Easy implementation of data communication into Bus-Environment
HC 4000
Housing

19"-version for mounting in control cabinets 3 U / 42 HP

dimensions:W 213.0 mm (8.39 in.) H 128.4 mm (5.06 in.) D 230.0 mm (9.05 in.)

material:stainless steel / polyester / silicone / glass / diverse plastics

protection:front IP40 / rear IP20 (mains supply secured against accidental touching)

Display

LCD graphic display black on white (240 x 128 pixel), LED background illuminated

Operation

18-button keyboard

System clock

accuracy approx. 1 minute/month (battery life approx. 15 years)

LED

1 LED (green):power on

1 LED (red-flashing):system failure

3 LEDs (yellow):alarm I, II, III

Data logger

4 parallel measuring values

(ring buffer with approx. 25,000 data points x 4)

(interval: 1/second - 1/hour)

Sensor-inputs

3 or 4 for optek photometric sensors

mA-inputs

optional:

2 x 4 - 20 mA (functionally galvanically isolated)

accuracy: < 0.5 %

resolution: < 0.05 %

load: < 200 Ohm

Remote-inputs

optional:7 x 24 V (19 ... 29 V DC),
typically 6.0 mA for remote range setting, remote zero, remote hold

Profibus® PA interface

optional:

Profibus® PA profile, version 3.01, amendment 2

FOUNDATION™ Fieldbus interface

optional:

FOUNDATION™ Fieldbus H1 (IEC 61158-2)

Sensor lamp-outputs

1 or 2 lamp supply for optek photometric sensors

4.5 ... 8.5 V DC

mA-outputs

2 or 4 x 0/4 - 20 mA (NAMUR)

(functionally galvanically isolated)

accuracy: < 0.5 %

resolution: < 0.05 %

load: < 600 Ohm

Relay-outputs

3 independent software-configurable relay contacts

0 - 50 V AC, 0 - 75 V DC, 0 - 2 A

for alarm or status feedback

initiation delay configurable: 0 - 999 sec.

Failsafe-output

1 SPDT contact to alarm in case of lamp or system failure (active)

0 - 50 V AC, 0 - 75 V DC, 0 - 2 A

Serial communication

RS232 bi-directional interface on front panel (with software package optek PC-transfer)

upload / download of configuration, download of data logger content

Cable lengths
(sensor)

2, 3, 5, 10, 15, 20, 30 ... 100 m

(7, 10, 16, 33, 49, 66, 98 ... 328 ft)

cable length > 100 m on request up to 1,000 m (3,280 ft)

sensors: AS56 / AS16: max: 50 m

Power supply

115 / 230 V AC, selectable (93.5 - 132 / 187 - 264 V AC, 47 - 64 Hz) or 24 V AC / DC (AC: 20.4 - 26.4 V AC, 47 - 64 Hz; DC: 20.4 - 28.8 V DC)

power consumption:< 50 VA

Ambient conditions

temperature during operation (no direct sunlight):

converter: -10 - 55 °C (14 - 131 °F)

with optional stainless steel housing S19-42 (IP65): -20 - 45 °C ( -4 - 113 °F)

with optional plastic housing B19-42 (IP66): -10 - 40 °C (14 - 104 °F)

temperature during transport (no direct sunlight): -20 - 70 °C ( -4 - 158 °F)

Software languages

English, German, French, Spanish, Dutch, Portuguese, Russian

Data given are subject to changes without prior notice.

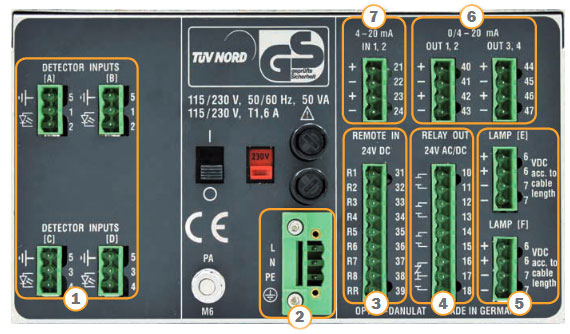

HC4000 Back panel
HC4000 Configuration 4301 4321 4351 4361 4402 4422 4452 4462
1 Detector inputs (optek) 3 3 3 3 4 4 4 4
2 Power supply 115/230 or 24 V checkmark checkmark checkmark checkmark checkmark checkmark checkmark checkmark
3 Remote-IN: (Zero, Range, Hold) - checkmark - - - checkmark - -
4 Relay-outputs 3 3 3 3 3 3 3 3
Failsafe-relay (active) checkmark checkmark checkmark checkmark checkmark checkmark checkmark checkmark
5 Lamp outputs (optek) 1 1 1 1 2 2 2 2
6 mA-outputs (0/4 - 20 mA) 2 2 2 2 4 4 4 4
7 mA-inputs (4 -20 mA) - 2 - - - 2 - -
8 Profibus® PA - - checkmark - - - checkmark -
FOUNDATION™ Fieldbus - - - checkmark - - - checkmark


Sensor Converter
1 2 4301 4321 4351 4361 4402 4422 4452 4462
DTF16 - checkmark checkmark checkmark checkmark checkmark checkmark checkmark checkmark
DTF16 AS16 or AF16 - - - - checkmark checkmark checkmark checkmark
Haze Control Units and Measuring Ranges Haze Control DTF16
Unit EBC Correlation 90° Side Scatter 11° Forward Scatter 0° Absorption
EBC 1 0 - 25 0 - 25 0 - 500
FTU 4 = 1 EBC 0 - 100 0 - 100 0 - 2,000
NTU 4 = 1 EBC 0 - 100 - -
ASBC - FTU 69 = 1 EBC 0 - 1,725 - 0 - 34,500
Helms 40 = 1 EBC 0 - 1,000 - -
ppm (DE) 6.4 ≈ 1 EBC* - 0 - 200 -
* non linear correlation

EBC= European Brewery Convention

FTU= Formazin Turbidity Units

NTU= Nephelometric Turbidity Units

ASBC= American Society of Brewing Chemists

Helms= Turbidity Unit

ppm (DE)= Parts per Million (Diatomaceous Earth)

HC4000 PROFIBUS Back panel

PROFIBUS® PA

  • Fulfills application profile for process automation (version 3.01)
  • Cyclic:
    • 4 Measuring outputs, each with 4x limit and status
    • Status of all 4 relays
    • 2 Measuring inputs
  • Acyclic:
    • Zero, Hold, Product change, Monitors, Error codes
  • GSD, EDD file and DTM for FDT interface provided
  • Interface to profibus DP segment using a segment coupler

FOUNDATION™ Fieldbus

  • Fulfills FOUNDATION™ Fieldbus H1 (IEC 61158-2)
  • Registered function blocks: 1xRB, 8xAI(s), 4xDI(s), 2xAO(s)
  • H1 Profile class: 31P, 32L
  • H1 Device class: basic, link master
  • 4 Measuring outputs with status
  • 4 Relays with status
  • 2 Measuring inputs
  • With optek specific resource block parameter: Zero, Hold, Product change
  • Device description (DD) and capabilities files provided

Speed / Spare Parts

Installation Kit S19

Installation Kit S19

PN: 1200-3390-0003-00

Installation Kit B19

Installation Kit B19

PN: 1200-3390-0001-00

Front panel Mounting Kit for series C4000, C8000, HazeControl

Front panel Mounting Kit for series C4000, C8000, HazeControl

PN: 1200-3321-0001-00

Wall mount housing B19-42 for 1 converter C4000, HazeControl or for 2 converters X56

Wall mount housing B19-42 for 1 converter C4000, HazeControl or for 2 converters X56

PN: 1200-3321-0002-00

Wall mount housing S19-42 for 1 converter C4000, C8000, HazeControl or for 2 converters X56

Wall mount housing S19-42 for 1 converter C4000, C8000, HazeControl or for 2 converters X56

PN: 1200-3321-0003-00

10x Fuse T 1,600A (5x20)

10x Fuse T 1,600A (5x20)

PN: 1200-3300-0005-00

10x Fuse T 3,150A (5x20)

10x Fuse T 3,150A (5x20)

PN: 1200-3300-0007-00

Haze Control Product Information

Visit our documentation page to view a complete list of translated documents.
