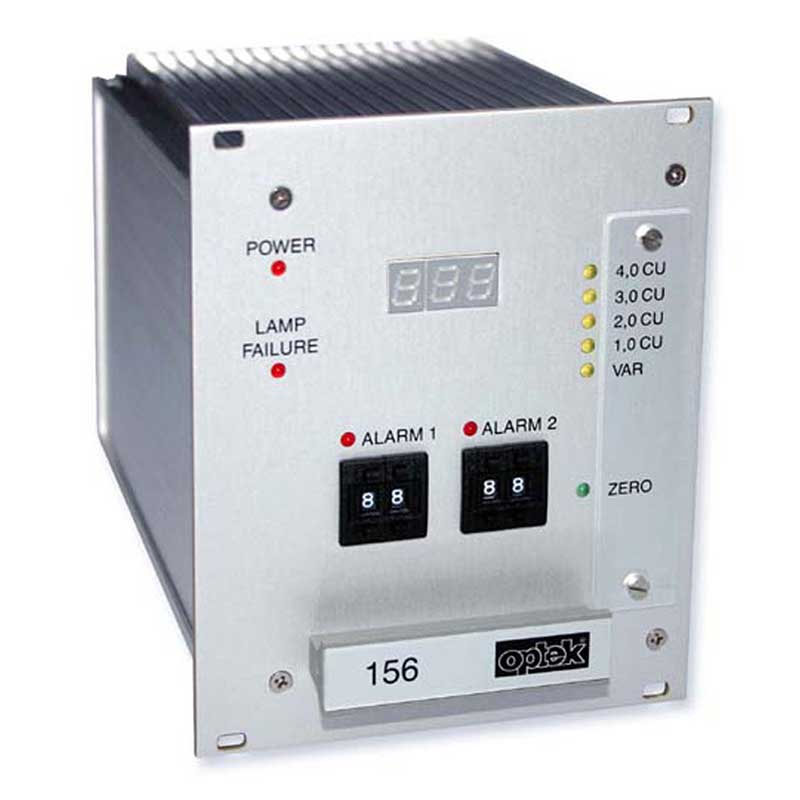

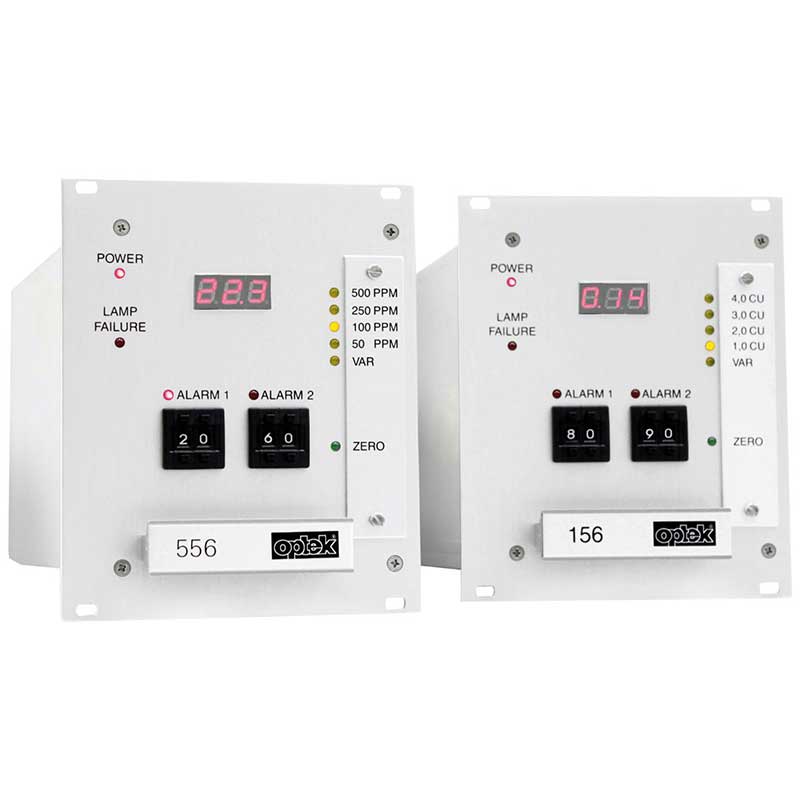

156 Converter

Single Channel Optical Converter

The single channel 156 converter is designed for the control of an optek AF56 / AS56 optical sensor or probe for process monitoring. Range settings and configurable alarms add flexibility in the process control. Analogue signals can be passed e.g., to PLC.

Used For

  • For one NIR Absorption sensor (Turbidity)
    • Turbidity (EN ISO 27027)
    • CU (concentration units)

The 156 converter provides continuous inline, real-time measurement and control of concentrations, color changes or turbidity in a variety of industrial processes. With four fixed measuring ranges and one variable measuring range, the converter can be set to match your specific process parameters. The 3-digit LED indicator displays the percentage of the selected measuring range. Two independent set points and one mA output are provided for alarms and real-time process monitoring when wired to the plant's process control system. An additional failsafe relay output is built in for remote sensing of lamp or power failure. Combined with a precision sensor, the converters are cost-effective measuring systems that provide reliable measurements throughout your process.

Features
Benefits

Single channel photometric measurement converter
Cost effective converter for a single photometric sensor

Two alarm settings
Individual setting of alarm status

Compact dimensions
Easy to integrate into installations
156
Housing

19"-version for rack-mounting 3 U / 21 HP

dimensions: W 106.3 mm (4.19 in) H 128.4 mm (5.06 in) D 208 mm (8.19 in)

material: aluminum / diverse plastics

protection: front IP40 / rear IP20 (mains supply secured against accidental touching)

Display

1 digital read-out, LED display, 3 digits, height: 7 mm

Operation

dip switches, potentiometer, coding switch

LED

1 LED (red):power on

1 LED (green):zero

5 LED (yellow):measuring ranges

2 LED (red):alarms I and II

1 LED (red):lamp or system failure

Sensor-inputs

1 for optek photometric sensor AF56 or AS56

Sensor lamp-outputs

1 lamp supply for optek photometric sensor 4.8 -7.0V DC

mA-outputs

1 x 4 - 20 mA

(functionally gavanically isolated)

accuracy:< 1 %

load:< 500 Ohm

Relay-outputs

2 independently adjustable SPDT contacts

0 - 250 V AC, 0 - 300 V DC, 0 - 8 A (refer to load limit curve relay outputs in the manual)

for alarm I and II

Failsafe-output

1 SPDT contact to alarm in case of lamp or system failure (active)

0 - 250 V AC, 0 - 300 V DC, 0 - 8 A

(refer to load limit curve relay outputs in the manual)

Cable lengths
(sensor)

2, 3, 5, 10, 15, 20, 30 ... 100 m

(7, 10, 16, 33, 49, 66, 98 ... 328 ft.)

sensor AS56: max 50 m

Power supply

115 / 230 V AC, selectable (93.5 - 132 / 187 - 264 V AC, 47 - 64 Hz) or 24 V AC / DC (AC: 20.4 - 26.4 V AC, 47 - 64 Hz; DC: 20.4 - 28.8 V DC)

power consumption:< 30 VA

Ambient conditions

temperature during operation (no direct sunlight):

converter:0 - 50 °C (32 - 122 °F)

with optional stainless steel housing S19-42 (IP65):0 - 40 °C (32 - 104 °F)

with optional plastic housing B19-42 (IP66):0 - 35 °C (32 - 95 °F)

with optional plastic housing B19-21 (IP66):0 - 35 °C (32 - 95 °F)

temperature during transport (no direct sunlight): -20 - 70 °C ( -4 - 158 °F)

Data given are subject to changes without prior notice.
