ACF60-35 Conductivity Sensor

Advanced Conductivity Sensor

Knowing the conductivity of liquid samples is a key parameter to control product quality throughout the production process. The optek ACF60 conductivity sensor fulfils technical requirements of international regulations for reliable measurements ensuring quality and consistency.

Used For

  • Conductivity (DIN EN 27888 / ISO 7888 & ASTM D1125):
    • 0 - 850 mS/cm
  • User defined concentration measurement by sample conductivity
  • Conductivity control
    • in chromatography processes for Pre / Post column monitoring
    • of pure, drinking and treatment water
    • in TFF / Ultrafiltration
    • of heat exchanger
    • for interface detection in food and beverage
    • of CIP processes

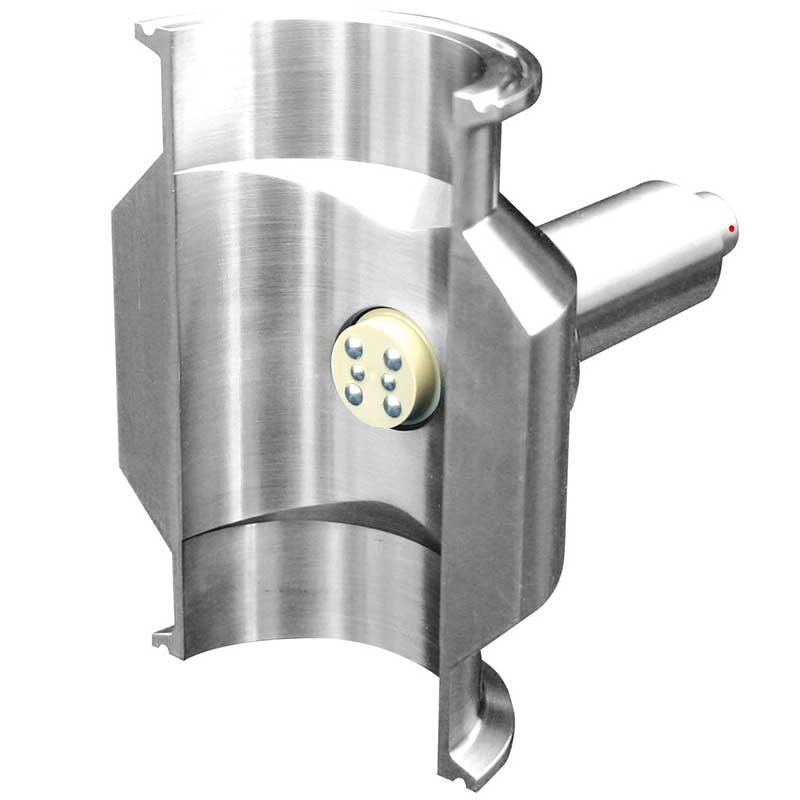

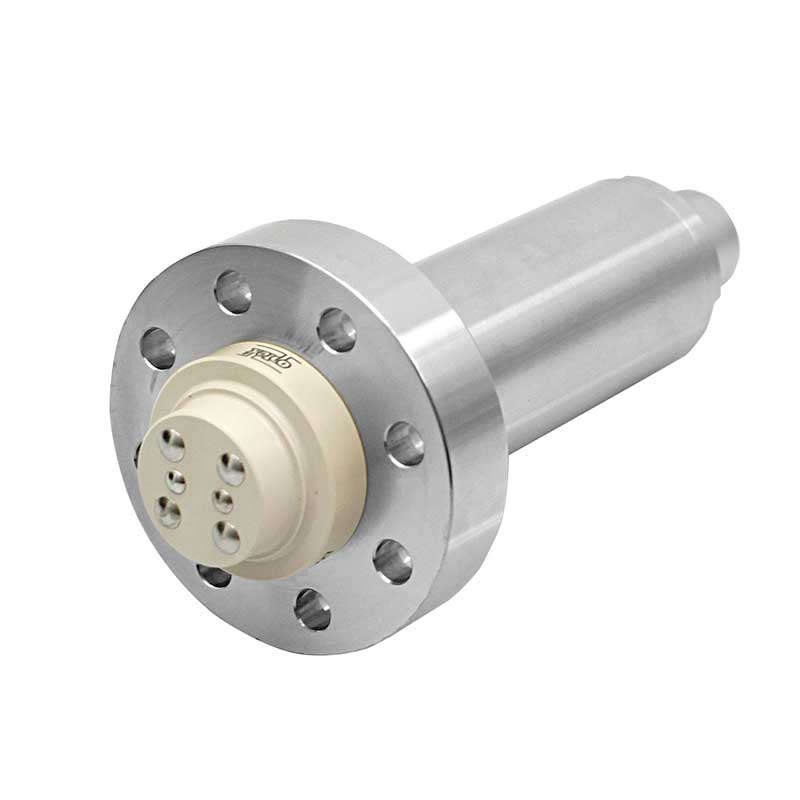

The conductivity sensor ACF60 features a superior six-electrode, four-pole design. The arrangement of the four electrodes applying current around the two electrodes measuring the resulting voltage guarantees reliable and precise measurements in a broad conductivity range. In combination with the optek C8000 universal converter the ACF60 sensor allows a wide dynamic range 0 - 850 mS/cm. This unique design provides a greatly reduced sensitivity to sensor fouling and polarization, which extends the sensor's lifetime.

Features
Benefits

Advanced six-electrode design with digital signal transmission
Minimized sensitivity to fouling and polarization

Wide measuring range: 0 - 10 μS/cm to 0 - 850 mS/cm
Measure low and high conductivity with one sensor only.

Multiple range capability with one sensor
Free configurable measurement ranges of one sensor, e.g., 0 … 100 µS/cm and 0 … 200 mS/cm (with C8080 converter)

CIP/SIP optimized design with USP class VI conformity
Maximized process safety, minimized contamination risk

Digital microprocessor inside probe body
Long lasting linearity and accuracy for less calibration and maintenance (one calibration point is sufficient)
ACF60
Measurement
Measuring Range

any measuring range between 0 - 10 μS/cm to 850 mS/cm

Protection

all parts have an IP rating of IP65 or higher

Sensor Body
Line size

1/8 in. to 6 in. (DN 6 to DN 150), ... others on request

Process Adaption
Material (Wetted)

PEEK (FDA, USP Class VI)

electrodes:

  • Stainless steel 1.4435 (SS316 L), df < 1%, BN2
  • Hastelloy 2.4602 Hastelloy C22

Port gasket

O-ring: EPDM (FDA / USP Class VI), ... others on request

Process pressure

20 bar (290 psi) up to + 50 °C (122 °F)

10 bar (145 psi) up to +100 °C (212 °F)

4 bar ( 58 psi) up to +135 °C (275 °F)

Temperature Ratings
Process temperature

permanent: -10 - 90 °C (14 - 194 °F)

peak 30 min/day: -10 - 135 °C (14 - 275 °F)

Ambient temperature

operation:-10 - 40 °C (14 - 104 °F)

transport:-20 - 70 °C ( -4 - 158 °F)

Temperature sensor

integrated Pt1000 RTD (IEC class A)

accuracy: ± 0.25 °C at 25 °C (77 °F)

Accuracy
0 - 10 μS/cm

calibrated: ± 1 % of measuring value ± 0.2 μS/cm

repeatability: ± 0.5%

0 - 250 mS/cm

calibrated: ± 1 % of measuring value ± 0.2 μS/cm

repeatability: ± 0.5%

250 - 500 mS/cm

calibrated: ± 2 % of measuring value ± 0.2 μS/cm

repeatability: ± 1%

500 - 850 mS/cm

calibrated: ± 5 % of measuring value ± 0.2 μS/cm

repeatability: ± 3%

Pressure and temperature ratings specified herein may be subject to limitations - see instruction manual. The appropriate choice of material for all wetted parts is the sole responsibility of the user. Data given are subject to changes without prior notice.

Speed / Spare Parts

Gasket set, in contact with media PF12 CF60

Gasket set, in contact with media PF12 CF60

PN: 1205-3149-0002-03
