Worldwide Inline Process Control Solutions

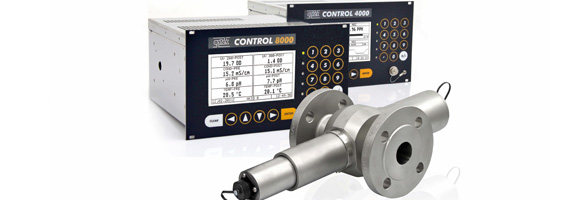

C4000 / C8000 Product Family

Control 4000 and Control 8000 are powerful, microprocessor-based converters.

The advanced modular design enables precision process monitoring and control with multiple sensors. The menu-based software is easy to use and configure, and available in German, English, French, Dutch, Spanish, Russian and Portuguese. The software includes adjustable signal damping, 16 linearization tables and advanced calculation capabilities. Multiple outputs transmit the measurements in real-time for precise process control. An integrated data logger captures vital process information for quality assurance and plant control records. This data is easily transferred to a PC via an RS232 port.

C4000 C8000
Sensors
Optical sensors (optek) 1 - 4 1-2
pH-Probes - 2
Conductivity sensors (optek) - 2
Communications
mA-outputs (0/4 - 20 mA) 2 / 4 8
mA-inputs (4 - 20 mA) 0 / 2 -
Relay-outputs 3 -
Failsafe-relay (active) checkmark checkmark
Remote-IN: Zero checkmark checkmark
Remote-IN: Range checkmark checkmark
Remote-IN: Hold checkmark -
Profibus® PA checkmark -
FOUNDATION™ Fieldbus checkmark checkmark
Explosion-proof
Ex-proof ATEX checkmark -
Ex-proof FM checkmark -
